KD310/SS

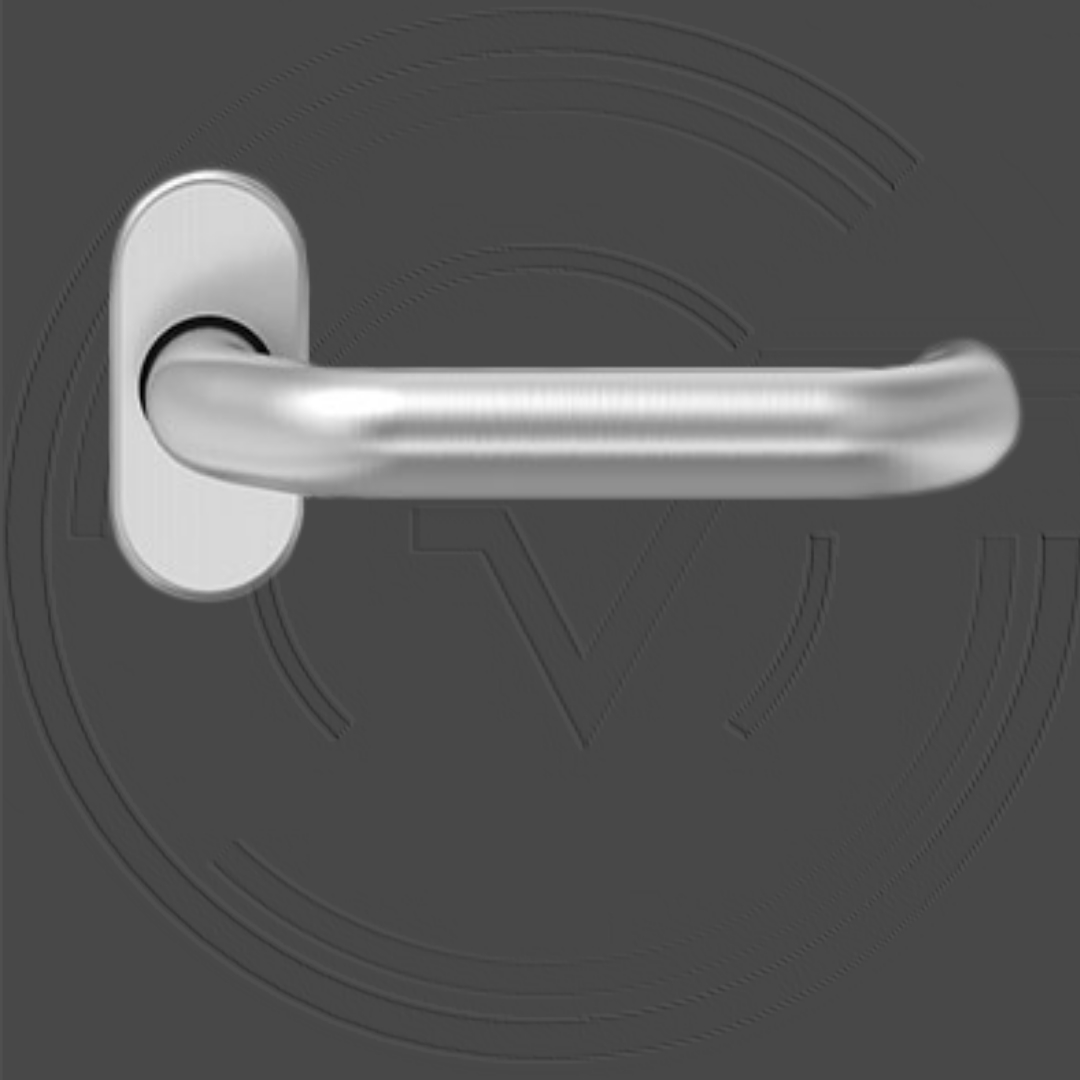

KAREKÖK / T Design KD310/SS Oval Roses Lever Handle Set
Technical Specifications
– 63*38*10mm Oval Roses Lever Handle Set
– Without locking escutcheon
– Ø19mm handle diameter, 140mm handle length
– AISI 304 Stainless Steel
– Standart stainless steel satin finish
– Different RAL color and PVD coating
– Corrosion resistance testing to EN 1670 Grade 3
– Circlips on rose with inner spring,
-Standard door thickness 42-55mm,
– Optinal accessories for door thickness 55-70mm
– Standard 8*8mm spindle, standard 120mm spindle length, optional 140-160mm spindle length
– Through bolt screws included in set
– Optional through bolt screws for locking rosette
Technical Brochure
Technical Specification
Technical Drawings
Certificate
KAREKÖK / T Design KD310/SS Oval Roses Lever Handle Set
Technical Specifications
– 63*38*10mm Oval Roses Lever Handle Set
– Without locking escutcheon
– Ø19mm handle diameter, 140mm handle length
– AISI 304 Stainless Steel
– Standart stainless steel satin finish
– Different RAL color and PVD coating
– Corrosion resistance testing to EN 1670 Grade 3
– Circlips on rose with inner spring,
-Standard door thickness 42-55mm,
– Optinal accessories for door thickness 55-70mm
– Standard 8*8mm spindle, standard 120mm spindle length, optional 140-160mm spindle length
– Through bolt screws included in set
– Optional through bolt screws for locking rosette
Door System Solutions
KAREKÖK is a company which develops enormous quantity of door system solutions for all types of projects. We are working on different door types: manual and automatic. Our team is an expert in its field. Based on a wide range of products we offer different alternatives and combinations to perform the task. KAREKÖK product range.
We combine various components for individual door scenarios and prepare separate sheets for doors and door accessories focusing on comfort and safety principles for end users.
We suggest proper and diverse solutions to our project partners according to their project budget and standards. Our priority is to save your time, create values and prestige in the details of your architectural projects.
EN Standards
EN 1670 Building hardware – Corrosion resistance – Requirements and test methods
This standard specifies the requirements for the corrosion resistance hardware for doors windows shutters and curtain walling.
